Mardeco stocks a vast range of quality European-made Hinges and Pivots. Visit one of our Hardware Resellers. Shop in-store and online. Ask your local Door and Joinery supplier for quality products from Mardeco Architectural Hardware.
IN.05.064 JNF COPLAN Invisible hinge with 3D adjustment (60 kg)
IN.05.064.W
Regular price $57.96Invisible hinge with 3D adjustment. Also available in other weight options: COPLAN 150 (60kg), COPLAN 175 (90kg), COPLAN 245 (120kg)
Max. weight load 60 kg
Minimum Door Thickness: 36 mm

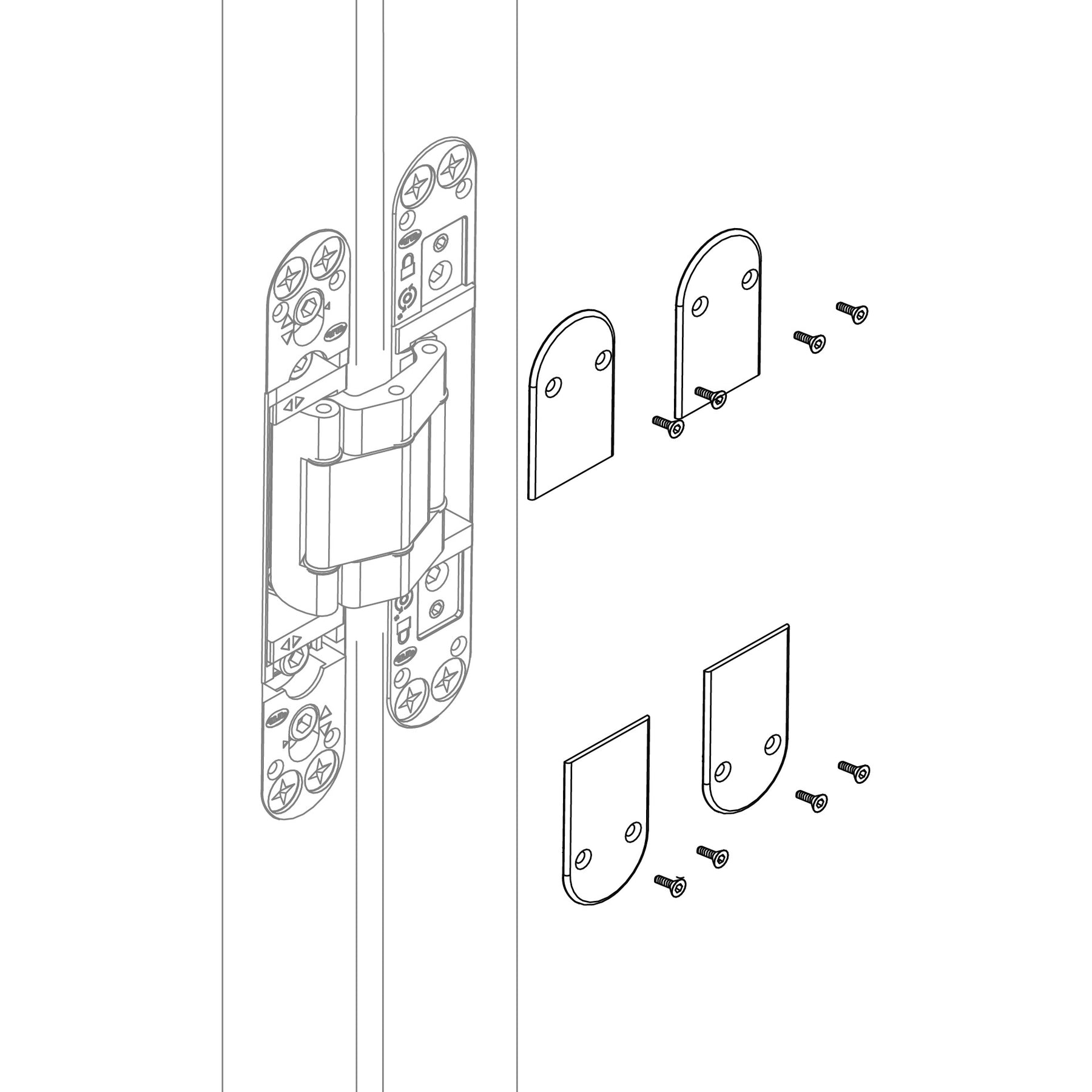

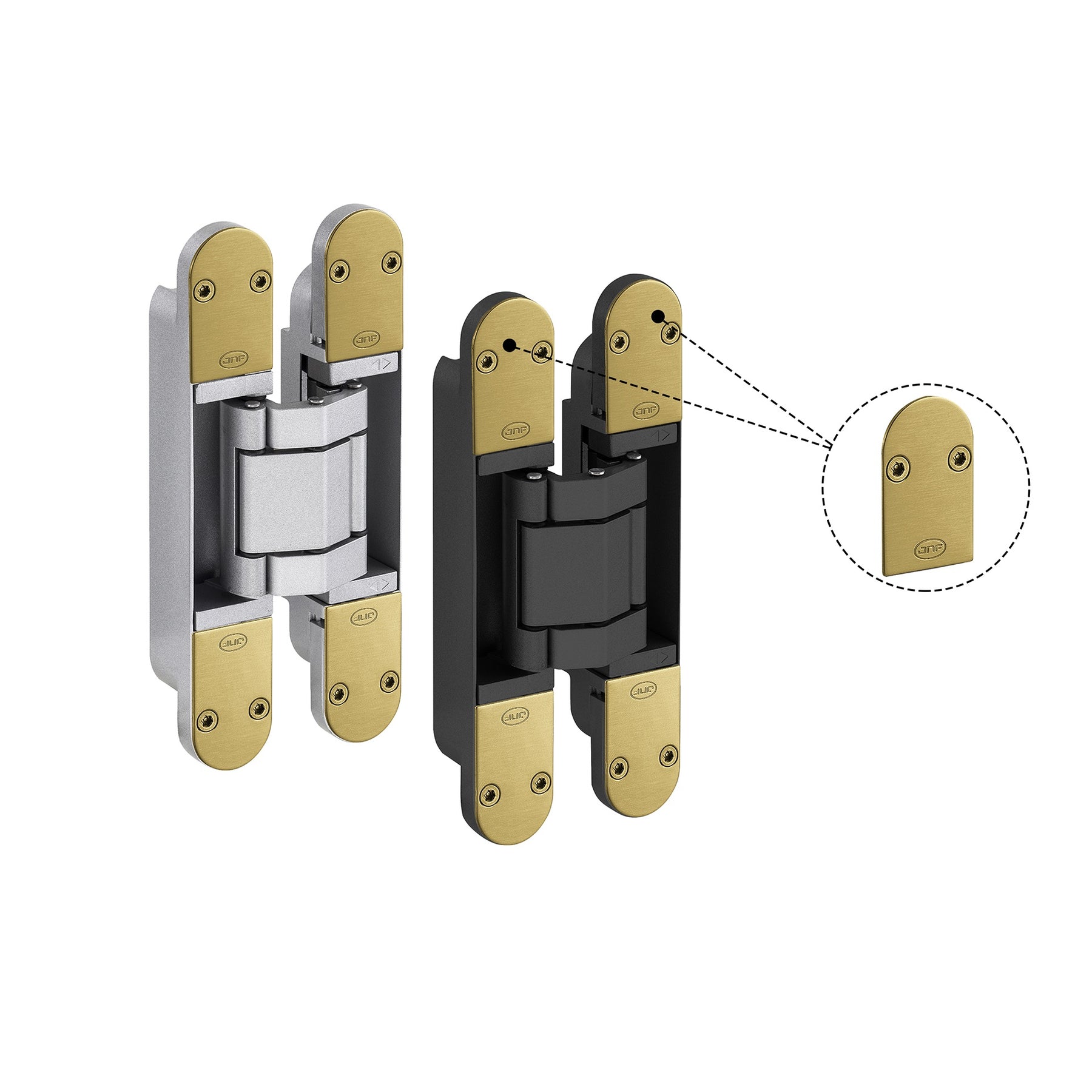

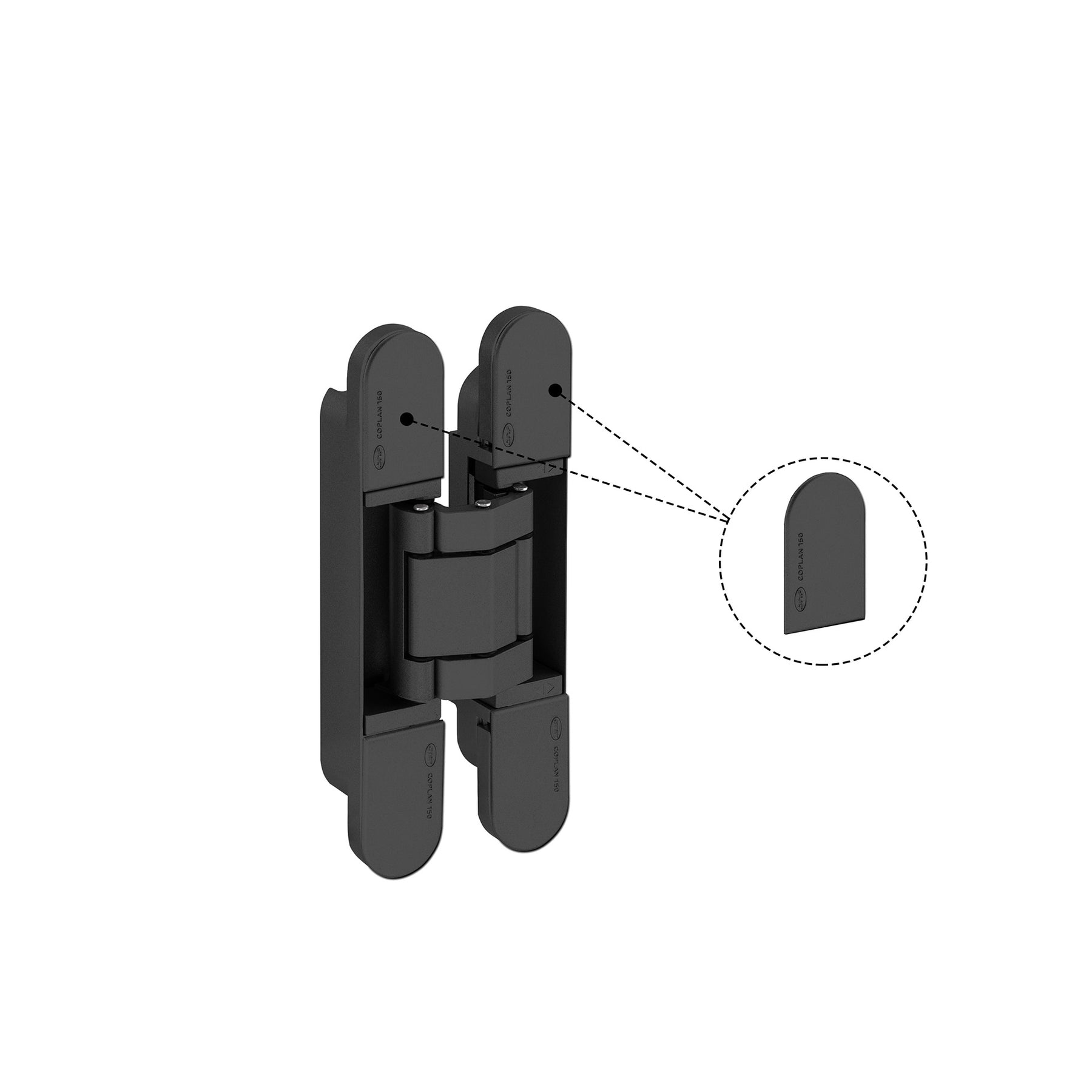

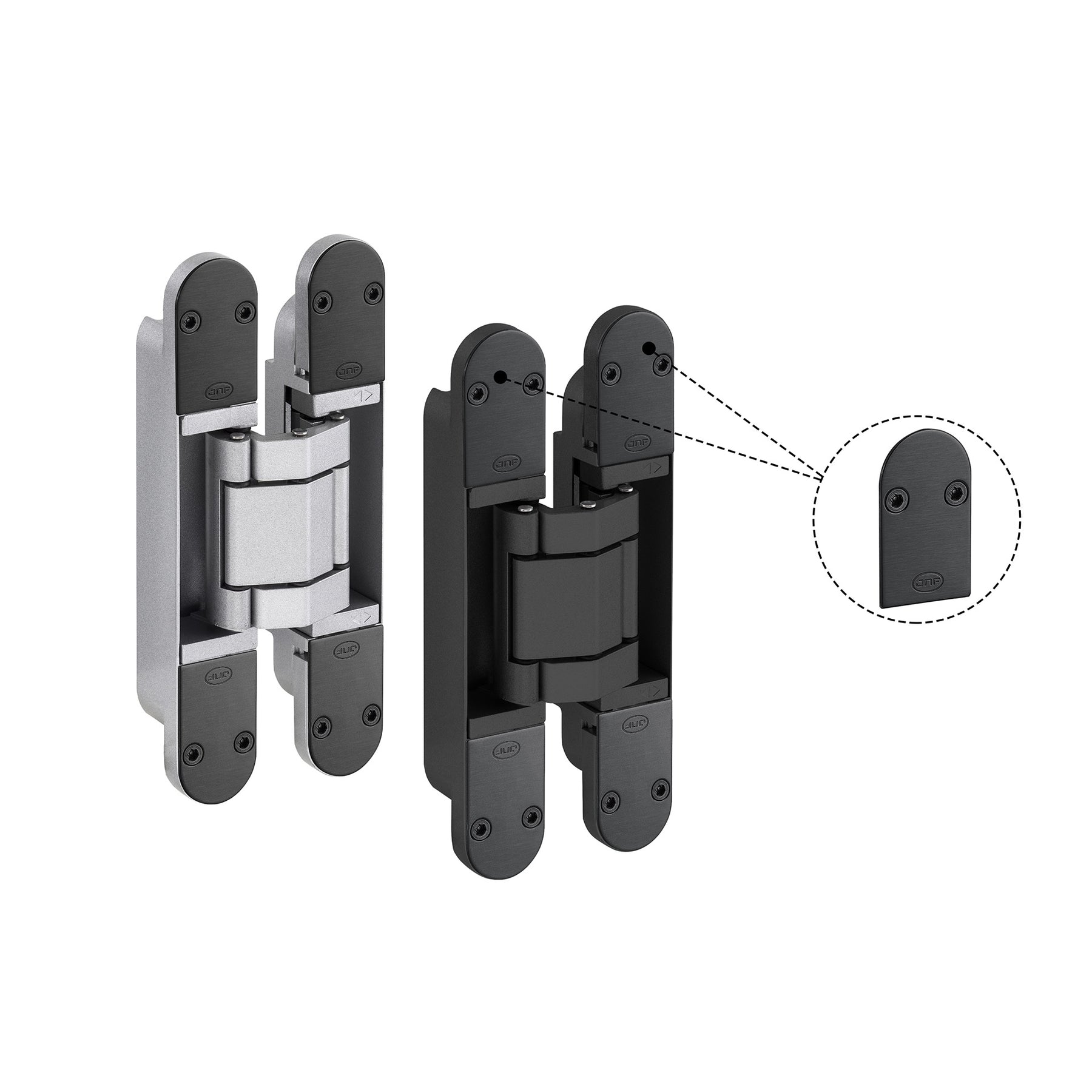

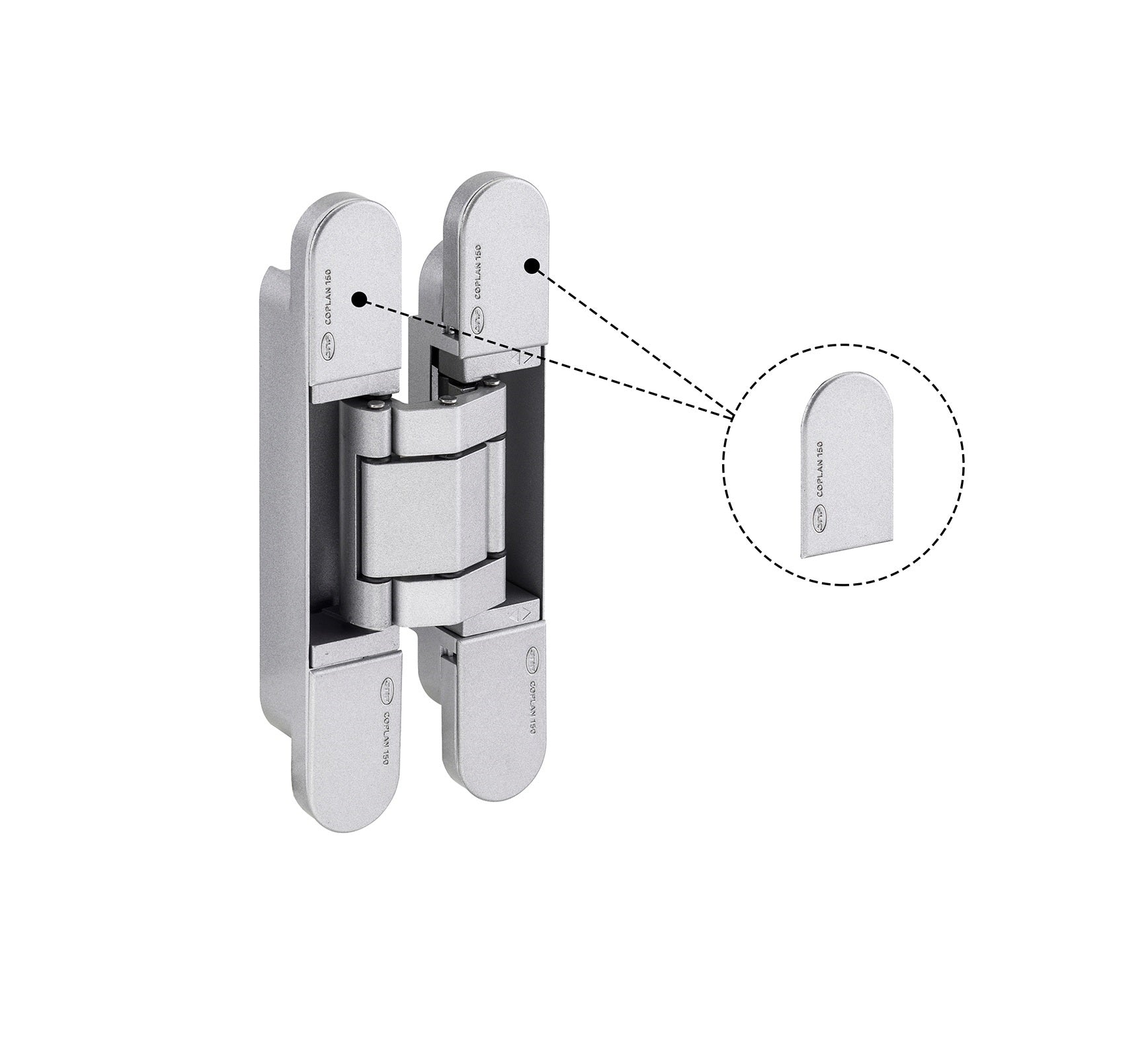

IN.05.061 JNF COPLAN Invisible hinge with 3D adjustment (80 kg)
IN.05.061.SC
Regular price $82.91Invisible hinge with 3D adjustment. Also available in other weight options: COPLAN 120 (50kg), COPLAN 175 (90kg), COPLAN 245 (120kg)
Minimum Door Thickness: 31 mm
Max. weight load 80 kg
Download JNF Warranty Statement here>
IN.05.062 JNF COPLAN Invisible hinge with 3D adjustment (120 kg)
IN.05.062.B
Regular price $128.48Invisible hinge with 3D adjustment. Also available in other weight options: COPLAN 120 (50kg), COPLAN 150 (60kg), COPLAN 245 (120kg)
Minimum Door Thickness: 34 mm
Max. weight load 120 kg
Download JNF Warranty Statement here>
IN.05.063 JNF COPLAN Invisible hinge with 3D adjustment (160 kg)
IN.05.063
Regular price $263.72Invisible hinge with 3D adjustment - also available in other weight options: COPLAN 120 (50kg), COPLAN 150 (60kg), COPLAN 175 (90kg),
Minimum Door Thickness: 40 mm
Max. weight load 160 kg
Download JNF Warranty Statement here>
IN.05.204 Hydraulic Pivot for wooden doors
IN.05.204
Regular price $557.86JNF by Mardeco IN.05.204 Hydraulic Pivot for wooden doors
Unique to the New Zealand market and exclusive to Mardeco, the patented JNF hydraulic pivot for wooden doors. The pivot is easy to fit on a finished floor without cutting concrete. A hydraulic pivot set for double action or rebated wooden doors.
• Two speeds closing valve regulation.
• Max. Door width 1000mm.
• Max. Weight up to 100 kg.
• Wood Thickness ≥ 40mm.
• International Patent.
• System for door position adjustment
±3mm | ±3mm / 4º (consult dw *)
• Installation on the floor surface
IN.05.214 Hydraulic Pivot set Heavy Duty for wooden doors
IN.05.214.HO
Regular price $2,134.36IN.05.214 Hydraulic Pivot for wooden doors up to 200 kg (non-hold open option)
IN.05.214.HO Hydraulic Pivot for wooden doors up to 200 kg (Hold open option)
The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort. The doors can be single or double-action, with a thickness of 40mm and up.
The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the absolute speed
being critical when the door has a lock installed. To cover doors with weights from 40 to 200kg, lengths up to 3000mm and heights up to 4000mm, the system has force adjustment, which can be done with the door already installed.
One of the characteristics of this system is that the rotation point of the door can be from 40mm to the centre of the door, with the installation being made from the top of the door, which allows the doors to go up to the ceiling.
JNF Hydraulic Pivot 200 Plus

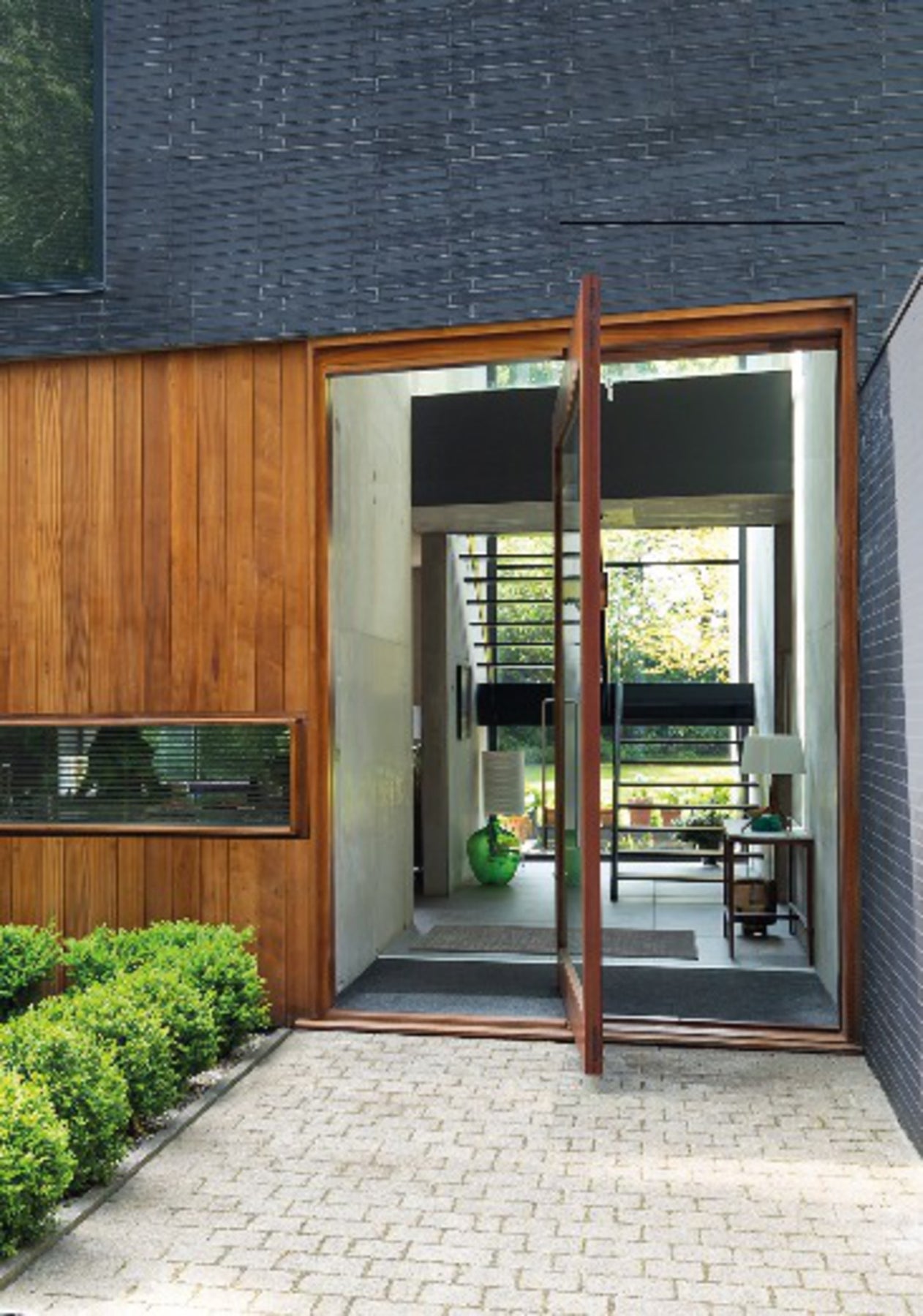

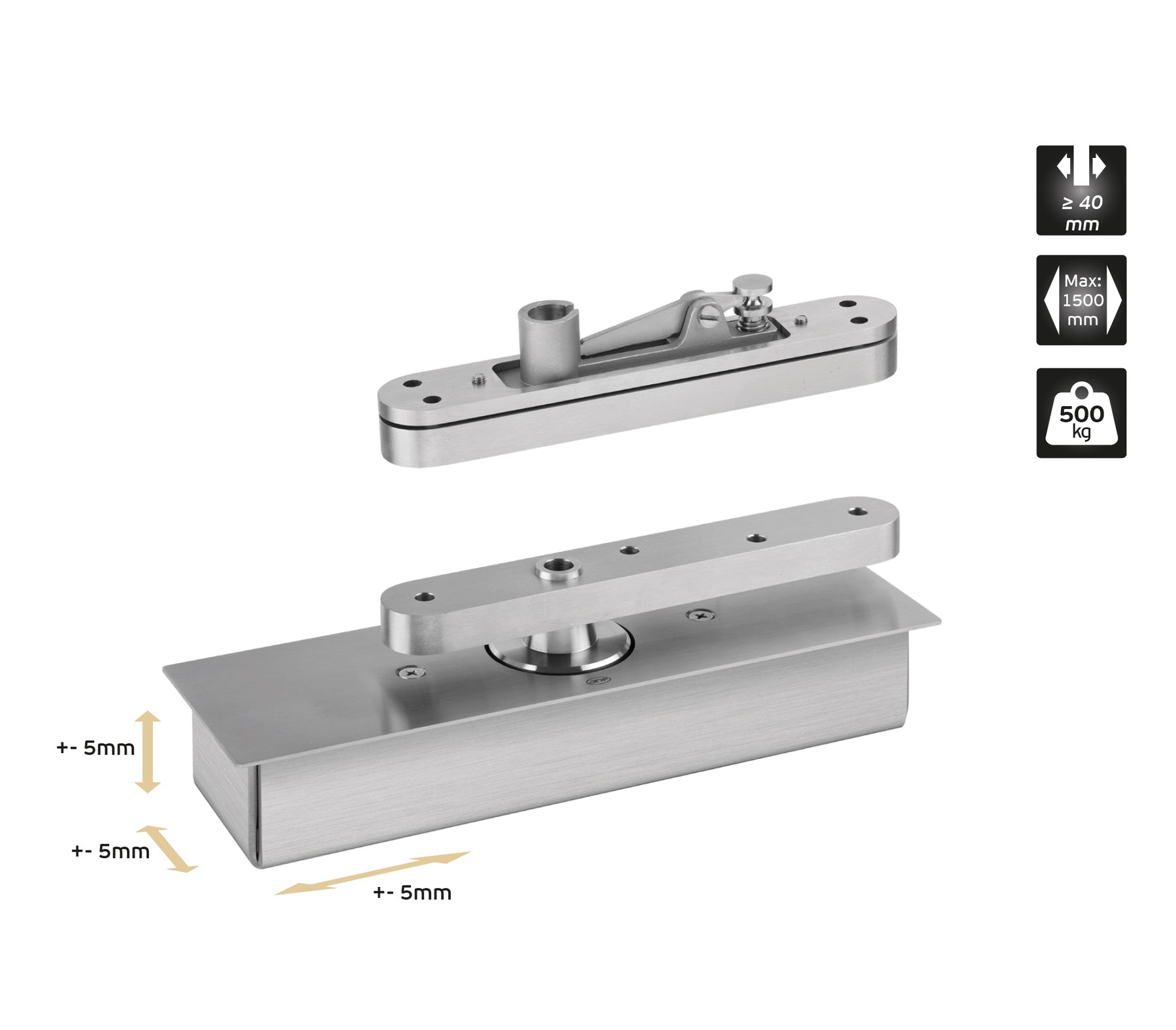

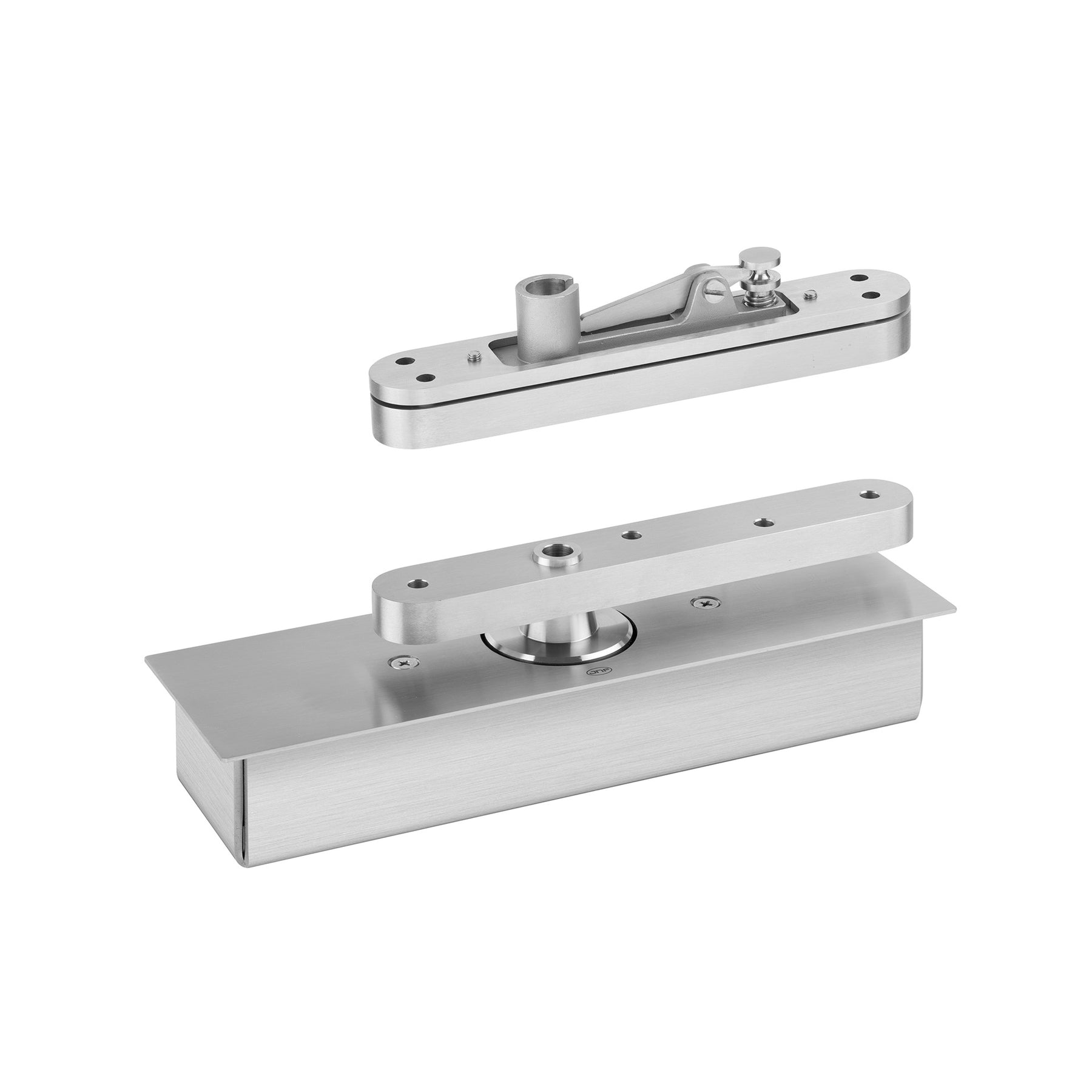

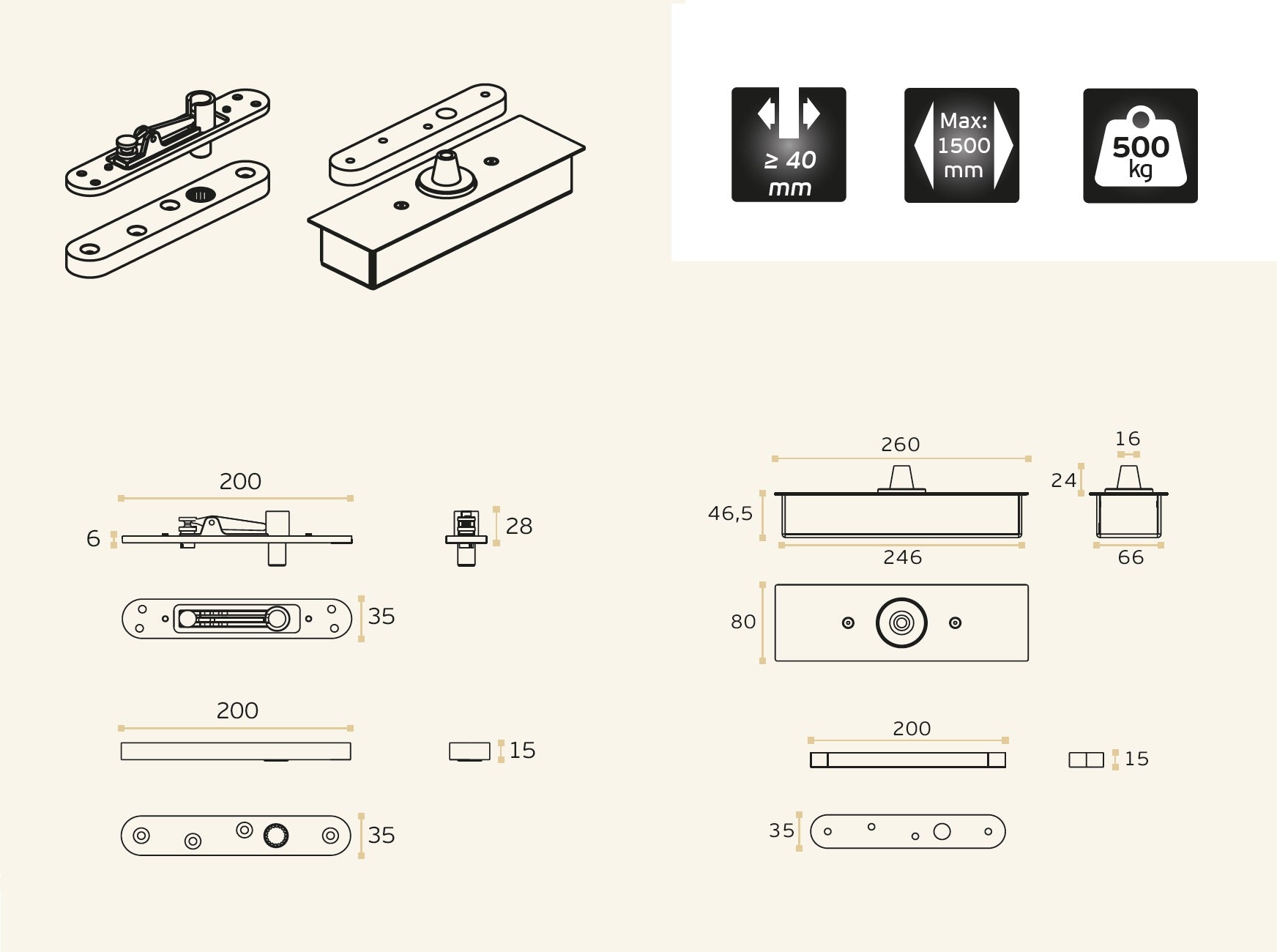

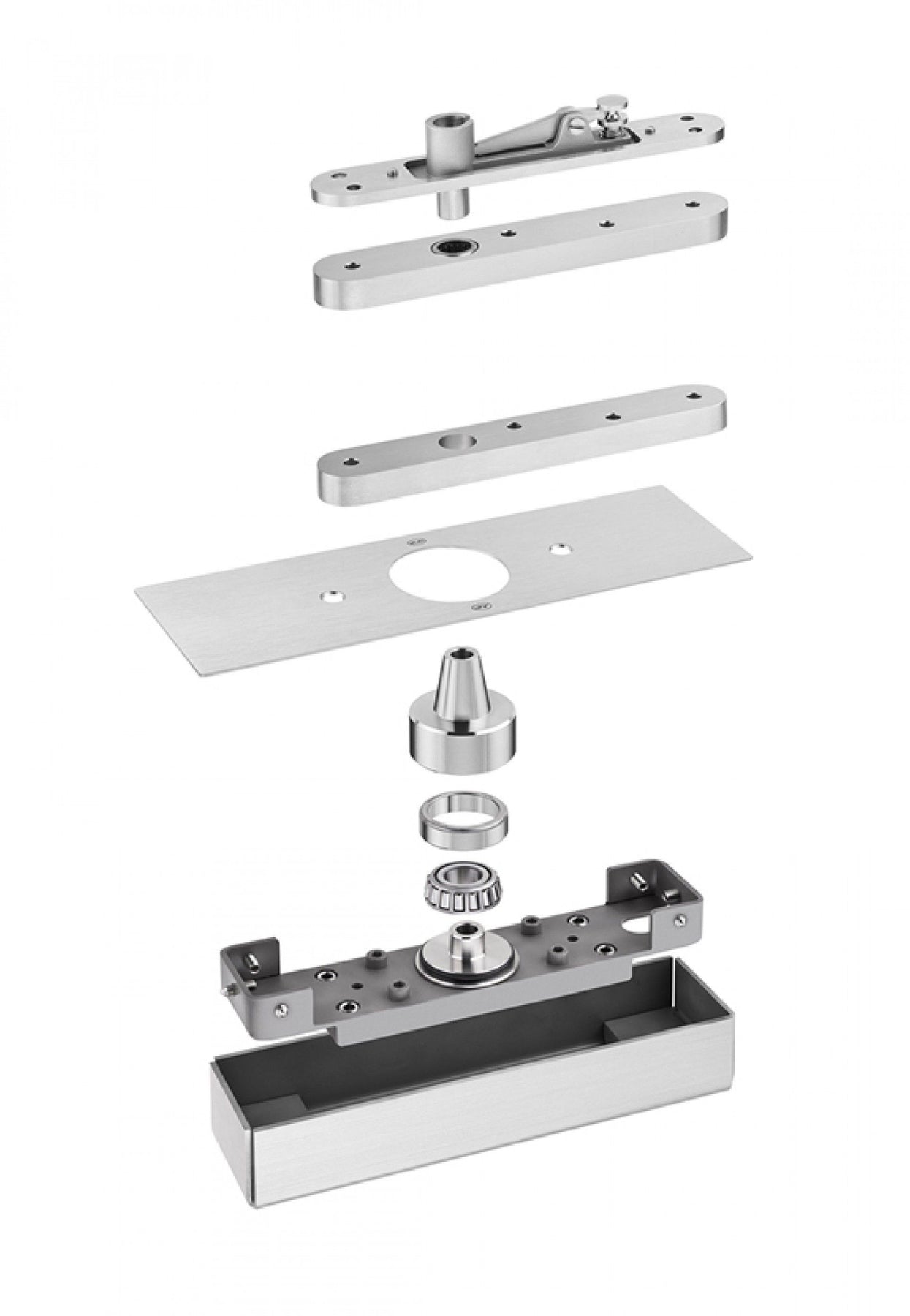

IN.05.500 Pivot for single or double action doors (500kg)
IN.05.500
Regular price $1,375.20Pivot for single or double action doors (500kg)
Complete set of pivots for single or double action doors or rebated doors. 3D adjustment system. All components are in stainless steel. With bearings in the upper and lower pivot. International patent.

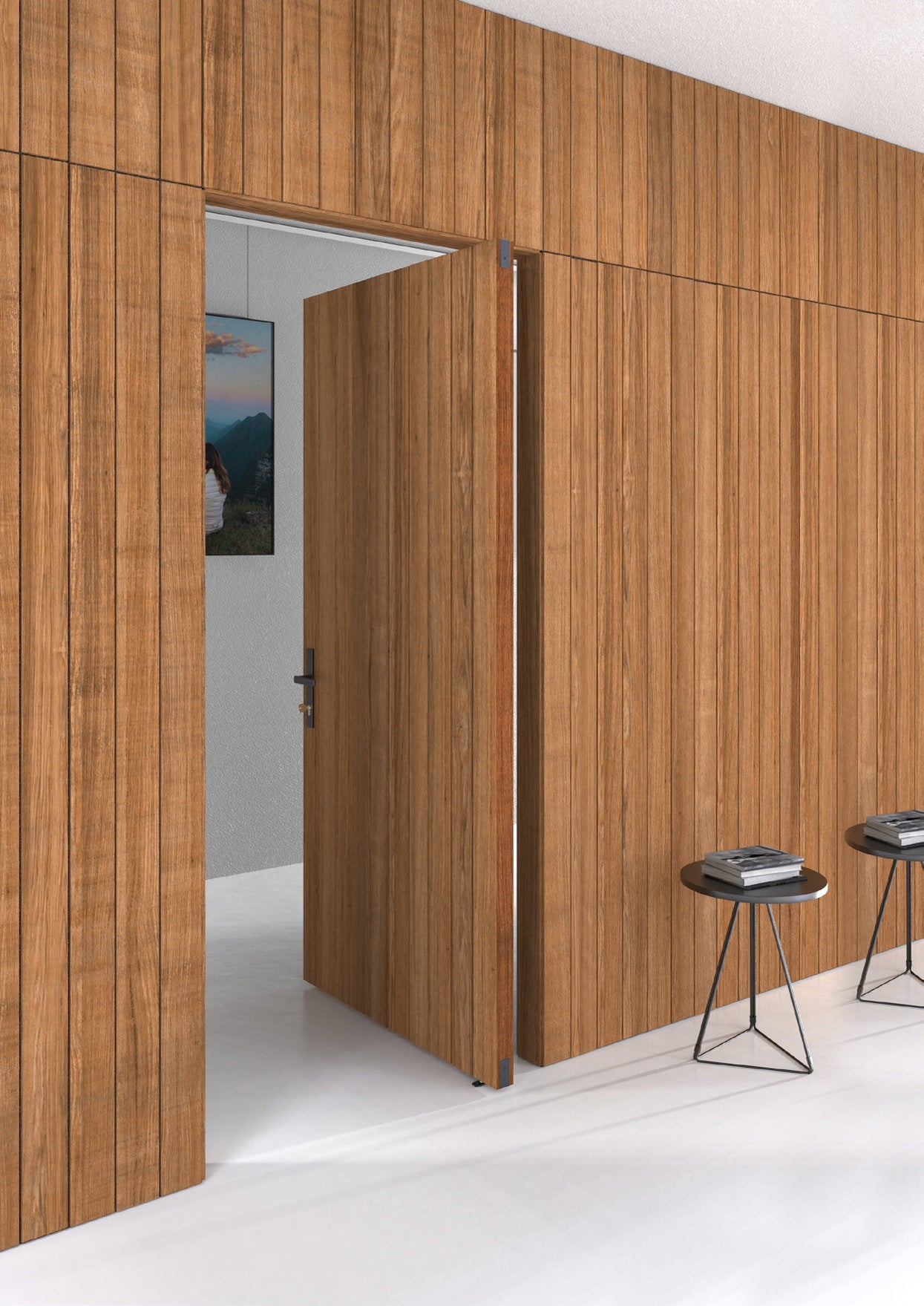

IN.05.199 interior pivot with spring
IN.05.199
Regular price $117.43JNF by Mardeco IN.05.199 interior pivot with spring.
Coil spring system with adjustable power.
• Double action door for rebated doors with 180º opening each side 90º hold open
• Adjustable spring closing force
• Max. pulling force 0,5Kg.
• Only for indoor use.
• International Patent

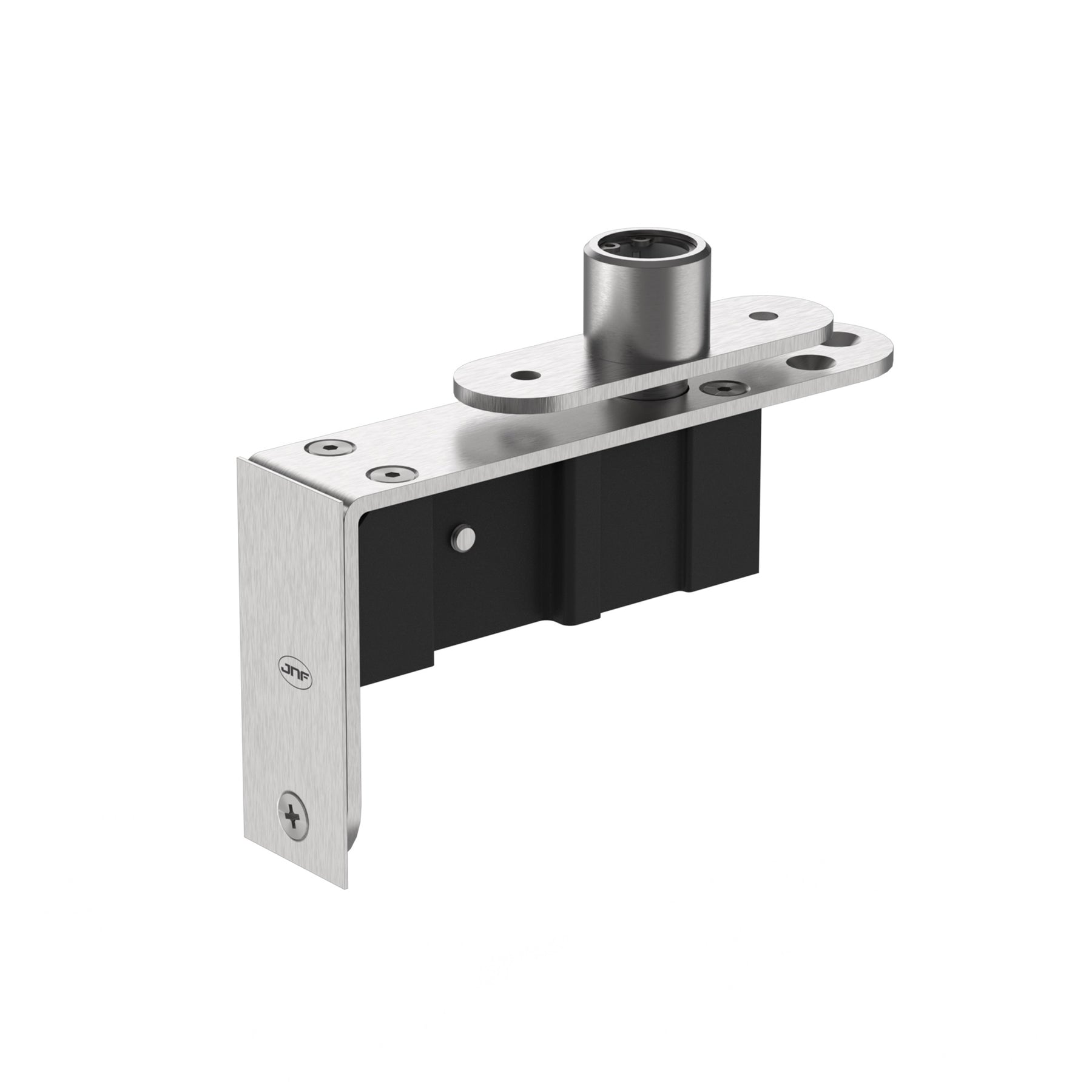

Use in combination with IN.05.201R top pivot
IN.05.202 Pivot system with door frame fixing
IN.05.202
Regular price $152.15JNF by Mardeco IN.05.202 Pivot system fixed to the door frame
Max weight 100 kg
• Pivot system fixed to the door frame.
• The base doesn’t need to be fixed to the ground.
• Parts prepared for mechanized doors.
• Suitable for doors from 35mm
IN.05.202.A/B Concealed Pivot System for wooden doors
IN.05.202.A
Regular price $152.28JNF by Mardeco Pivot system for wooden doors
IN.05.202.A (single floor fixing)
IN.05.202.B (plate floor fixing)
Max weight 100 kg
• Concealed Pivot System for wooden doors.
• Parts prepared for mechanized doors.
• Suitable for doors from 35mm
• Solid Brass bearings ensure long life and no noise even after several years and cycles.
IN.05.207 Pivot system for one way doors (40kg)
IN.05.207
Regular price $94.67Pivot system for one-way doors (40kg)
Door thickness: 35 - 45 mm
Download JNF Warranty Statement here>
IN.05.208 Flush hinge for single or double action wooden doors (65kg)
IN.05.208
Regular price $131.38Flush hinge for single or double-action wooden doors (65kg)
• Complete set of pivot for single or double action doors
• Bottom pivot with ball
• Top pivot with lever axle
• Shaf with 14mm diameter
• International Registration
Download JNF Warranty Statement here>

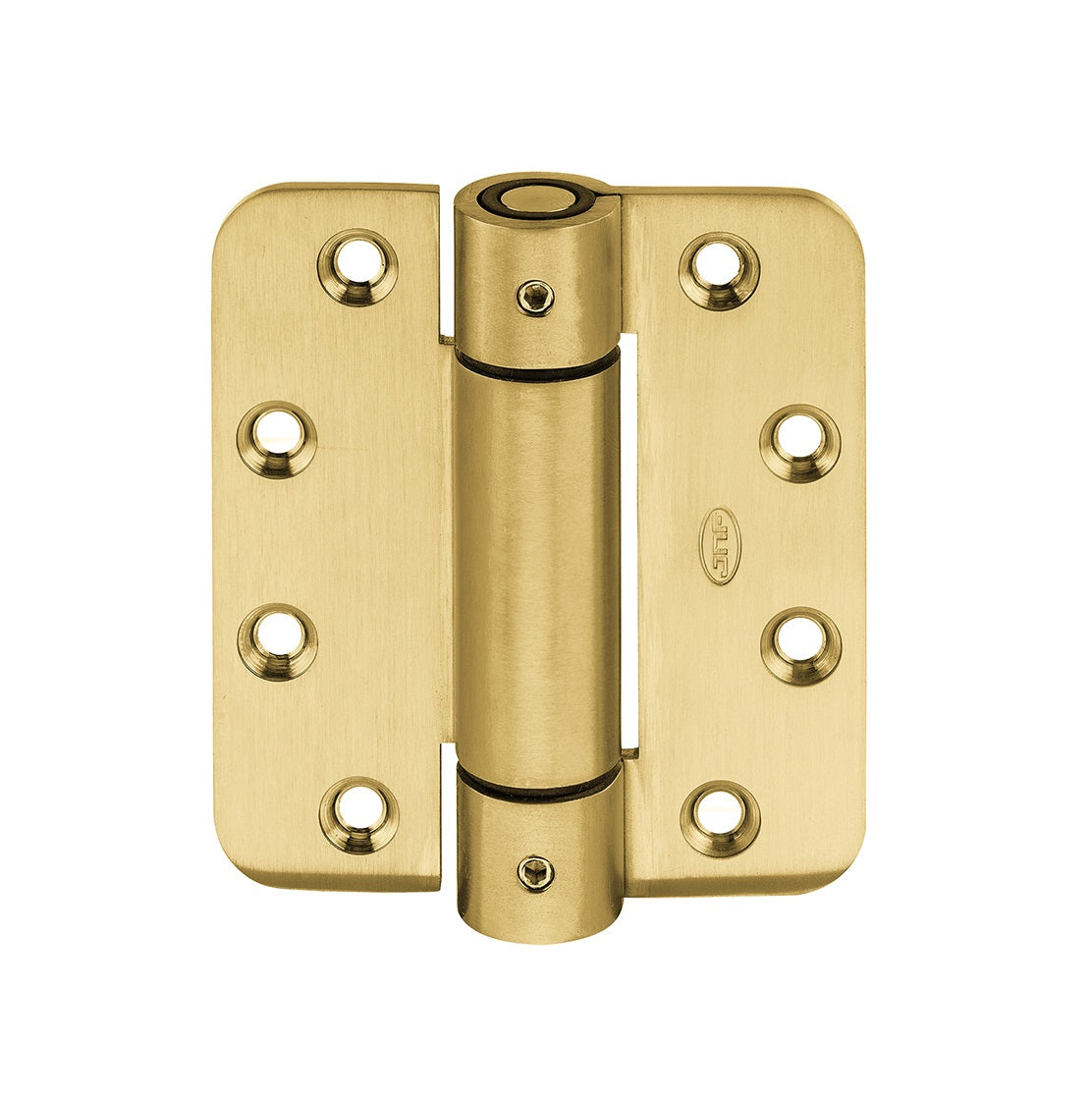

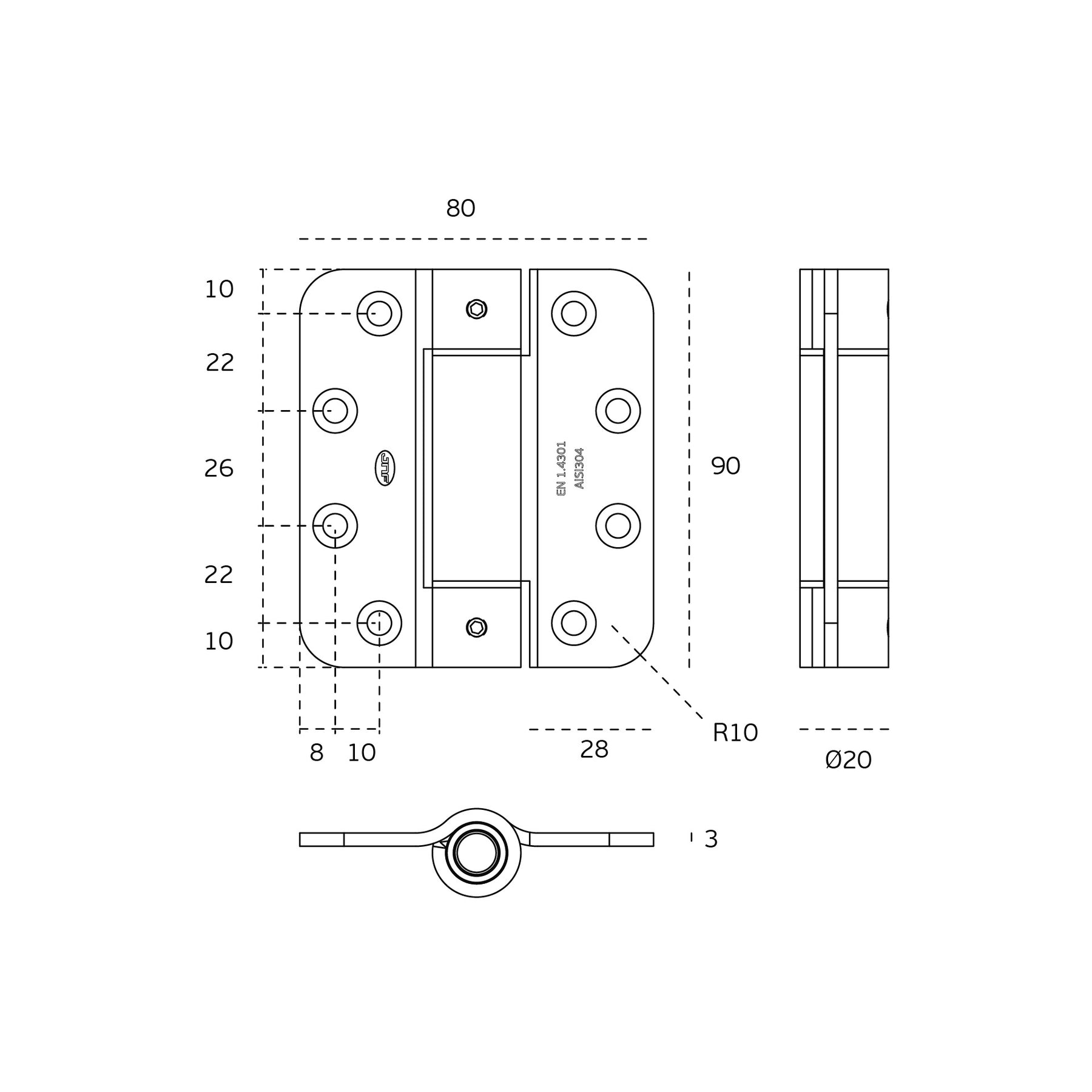

IN.05.041.90 HEAVY DUTY hinge with polimeric bushings
Regular price $47.97
HEAVY DUTY hinge with polimeric bushings
Max. Weight Load 60 - 90 kg
Download JNF Warranty Statement here>
IN.05.041.125 HEAVY DUTY hinge with polimeric bushings
IN.05.041.125
Regular price $40.90HEAVY DUTY hinge with polimeric bushings
Max. Weight Load 90kg - 120 kg
Download JNF Warranty Statement here>

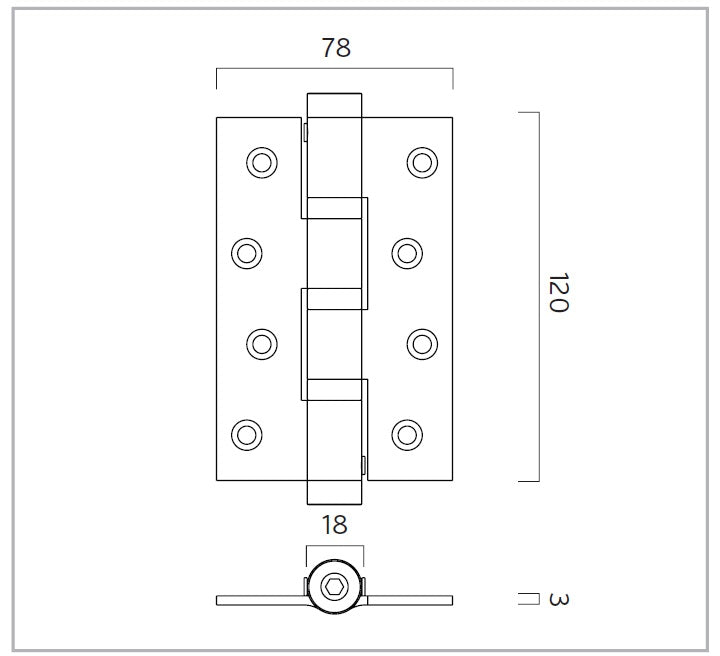

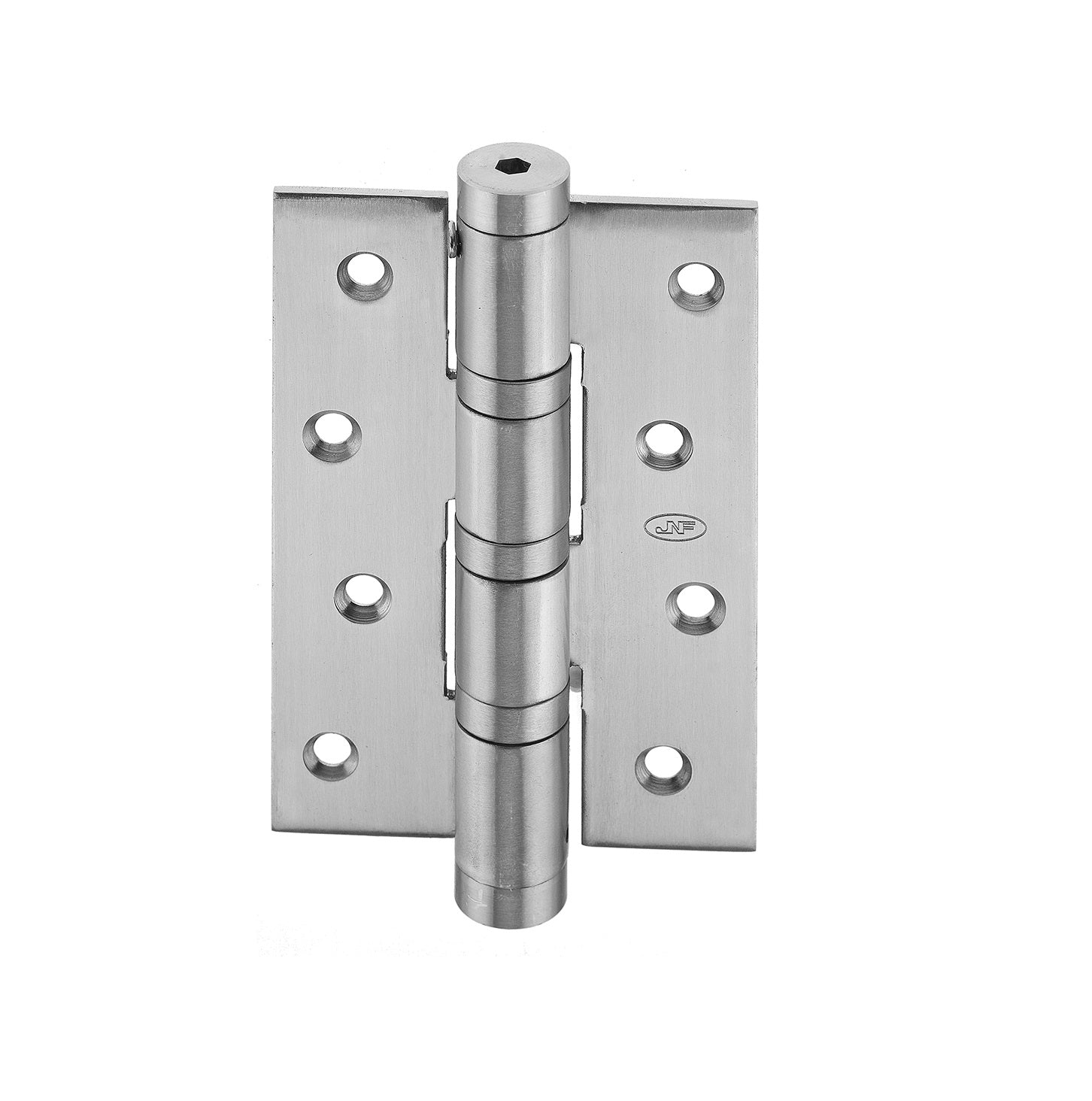

IN.05.646 Spring hinge with 3 ball bearings (78x120x3mm)
IN.05.646
Regular price $40.57Spring hinge with 3 ball bearings (78x120x3mm)
Max. Weight Load 40 kg. Minimum door width 35 mm
Download JNF Warranty Statement here>
IN.05.040 Spring Hinge Hold Open / Soft Close
IN.05.040.TB
Regular price $58.65Spring Hinge 90 degrees Hold Open function, Two ball bearings. Soft Closing
Download JNF Warranty Statement here>
IN.05.645 Double Action Spring Hinge six ball bearings
IN.05.645
Regular price $67.62JNF by Mardeco IN.05.645 Double Action Spring Hinge six ball bearings
Max. Weight Load:
Download JNF Warranty Statement here>
IN.05.655 Double Action Spring Hinge with 10 ball bearings
IN.05.655
Regular price $91.29JNF by Mardeco IN.05.655 Double Action Spring Hinge with 10 ball bearings.
Max. Weight Load 50 kg, max width 1000 mm. Minimum door width 35 mm
Download JNF Warranty Statement here>
IN.05.656 Single Action Spring Hinge with five ball bearings
IN.05.656
Regular price $48.95JNF by Mardeco IN.05.656 Single Action Spring Hinge with five ball bearings
72 X 180 X 3MM
Download JNF Warranty Statement here>
IN.05.660 Double action Spring Hinge 196 mm
IN.05.660
Regular price $91.29Double action Spring Hinge 196 mm. Two ball bearings
Max. Weight Load 50 kg
Minimum door width 40 mm
Download JNF Warranty Statement here>
IN.05.026 Hinge (63x100x3mm)
IN.05.026.E

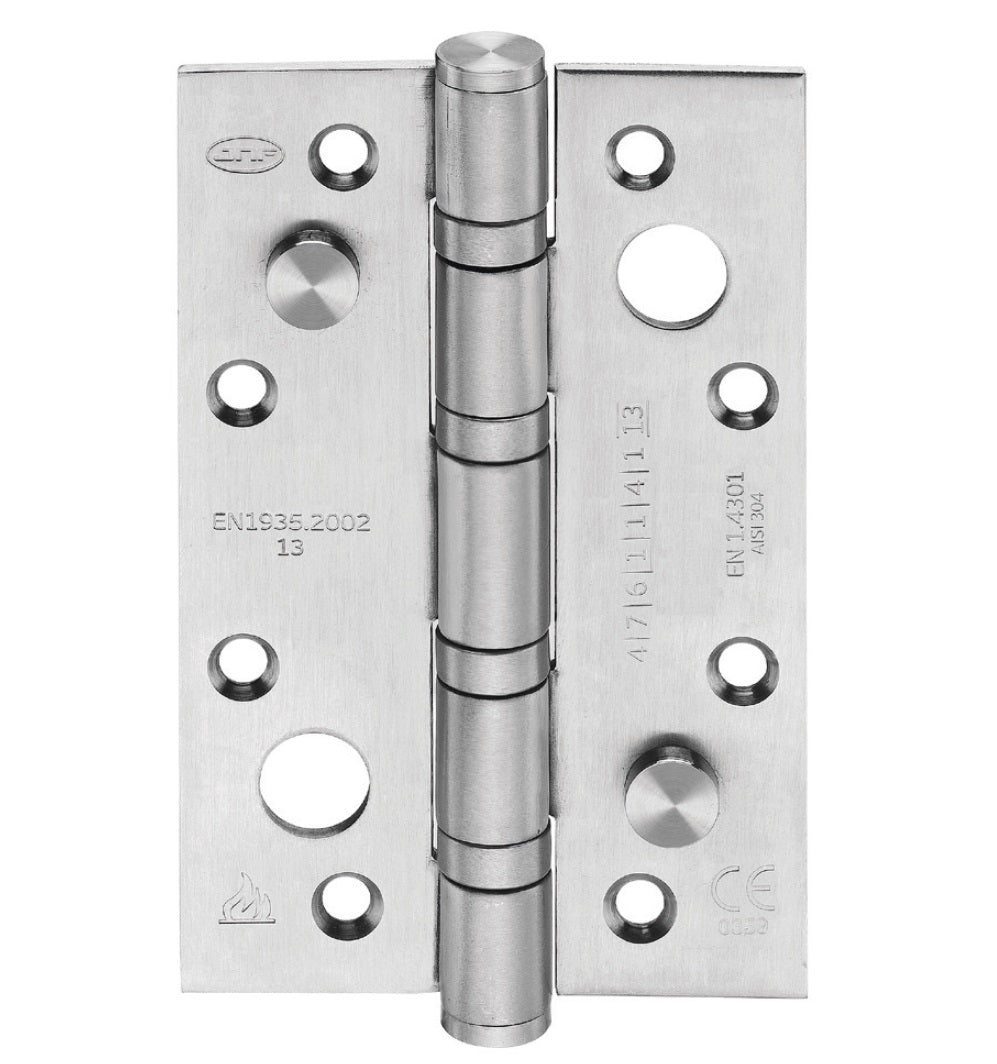

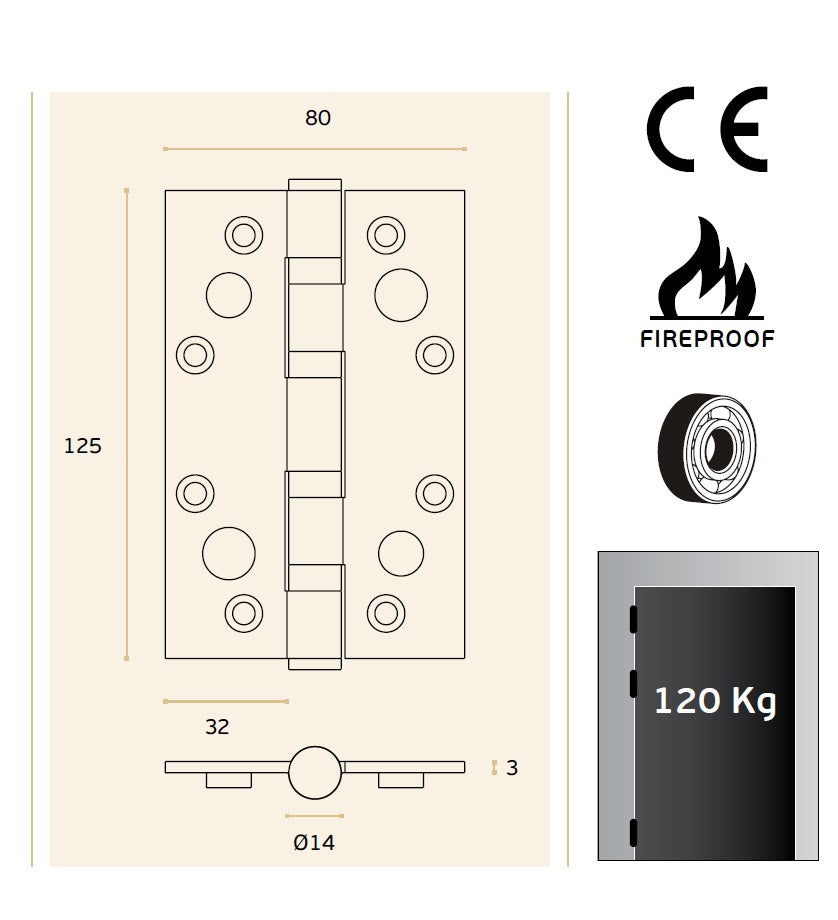

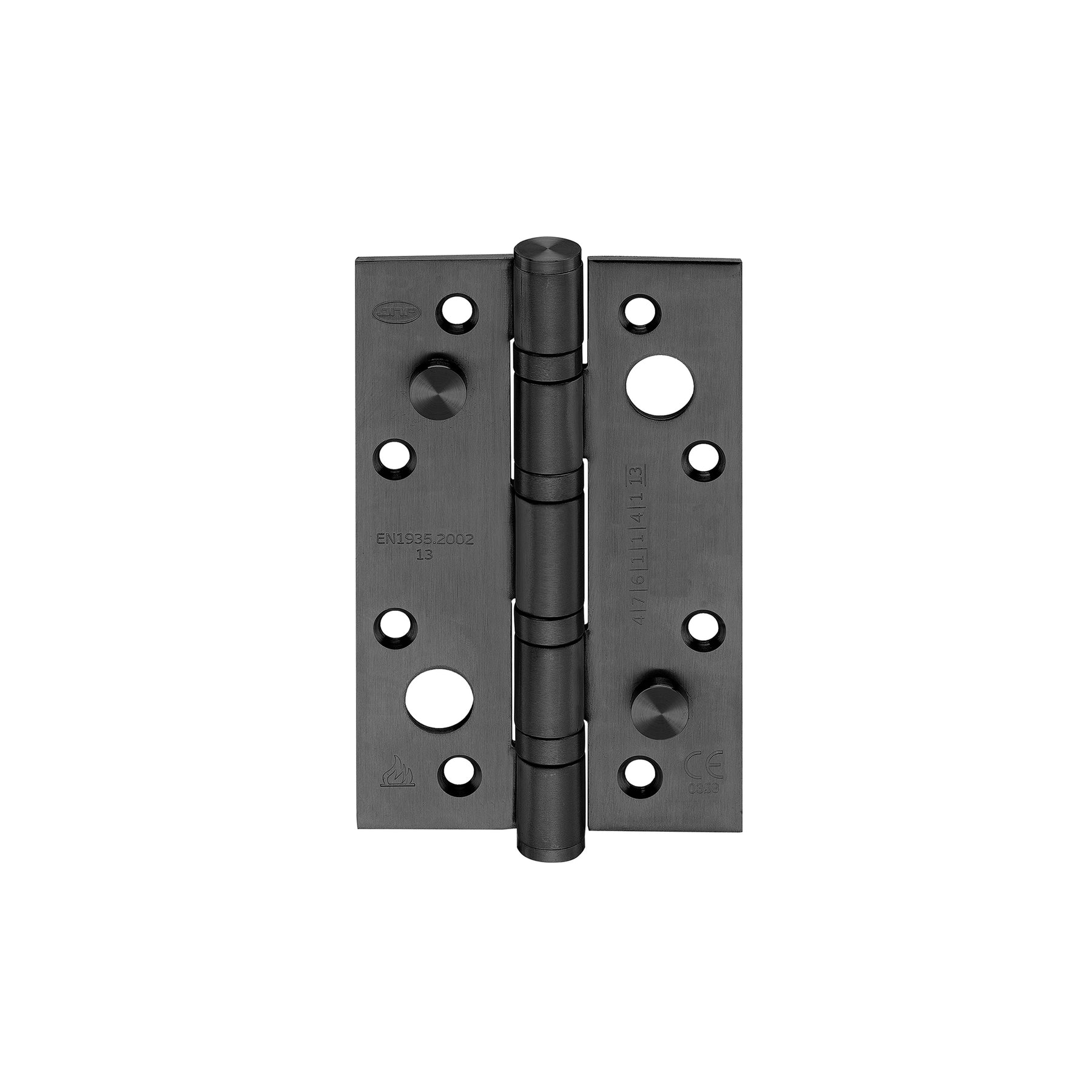

Regular price $20.72IN.05.020.S.CF Security butt hinge with 4 ball bearings
IN.05.020.S.CF
Regular price $23.35Security butt hinge with 4 ball bearings. Fire proof.
80 x 125 x 3 mm
Max. weight load 120 kg
Download JNF Warranty Statement here>
IN.05.020.S.CF 316 Security butt hinge with 4 ball bearings
IN.05.020.S.CF.316
Regular price $30.89Security butt hinge with 4 ball bearings. 316 Stainless Steel.
Maximum weight door 120 kg.
IN.81.203 Hydraulic Pivot Set for Glass Doors
IN.81.203
Regular price $548.44Hydraulic Pivot Set for Glass Doors
• Two closing speeds with valve regulation.
• Application in the pavement surface without masonry work
• Max. Door width 1000mm.
• Max. Weight up to 100kg.
• Glass thickness 10-13mm.
• International patent.
• System for door position adjustment
IN.05.196.0.ECO Pivot system
IN.05.196.0.ECO
Regular price $60.79JNF by Mardeco Door Pivot single or double action. Eco series 201 Stainless Steel
Max weight 100 kg
• Pivot system fixed to the door.
• Suitable for doors from 35mm
