IN.05.202 Pivot system with door frame fixing

JNF by Mardeco IN.05.202 Pivot system fixed to the door frame

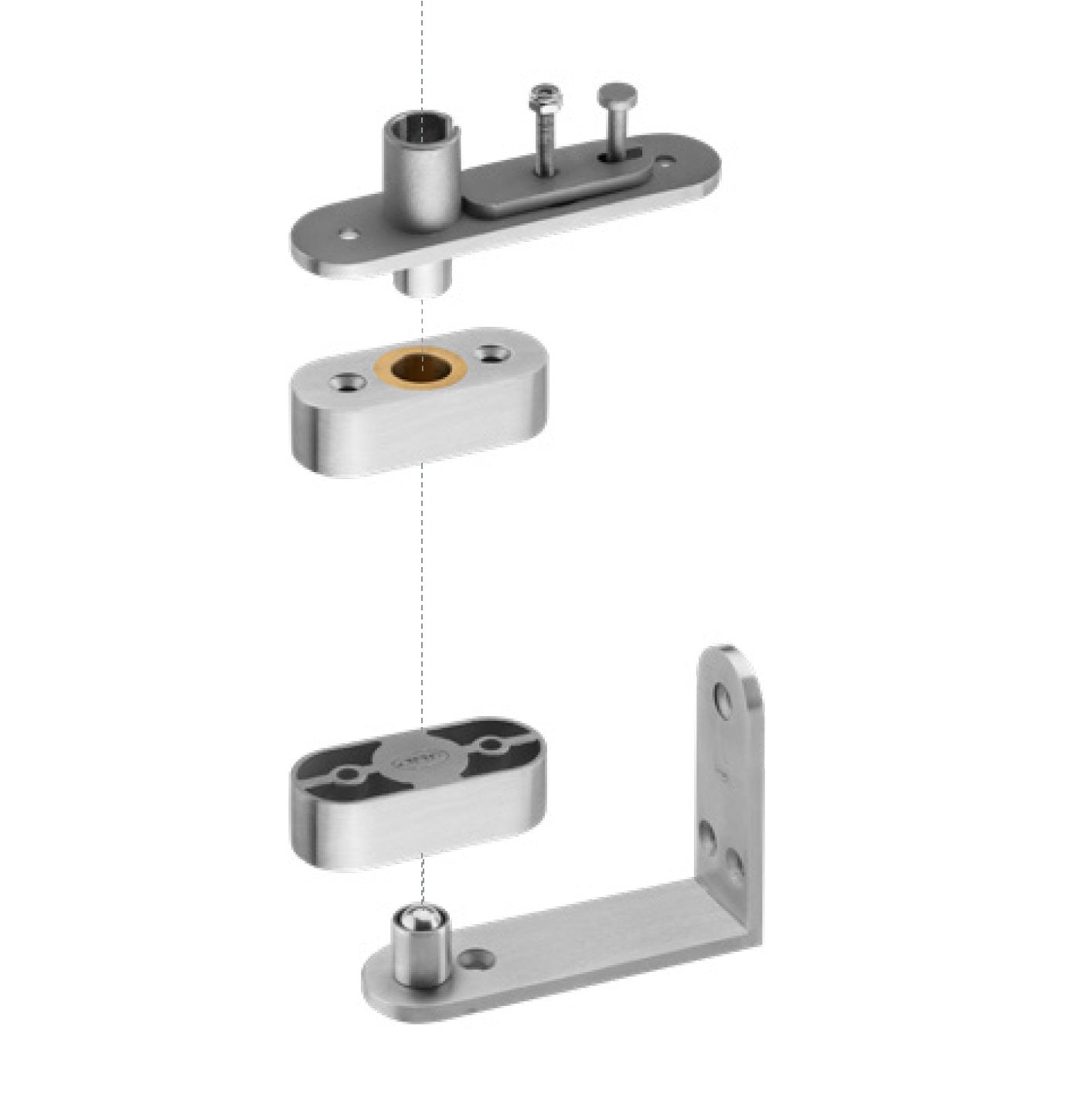

Bronze bearings have proven their reliability over decades, even in demanding conditions. That’s why JNF incorporates them into this range of door pivots—to ensure long-lasting performance and silent operation, even after years of use and repeated cycles.

A key advantage of this pivot range is its versatility:

• It includes models that are completely concealed, as well as options that use the door frame as a bottom pivot, eliminating the need to drill into the floor.

• The system also offers flexible installation, allowing positioning from 50mm off the edge to the center of the door, adapting easily to various design requirements.

Max weight 100 kg

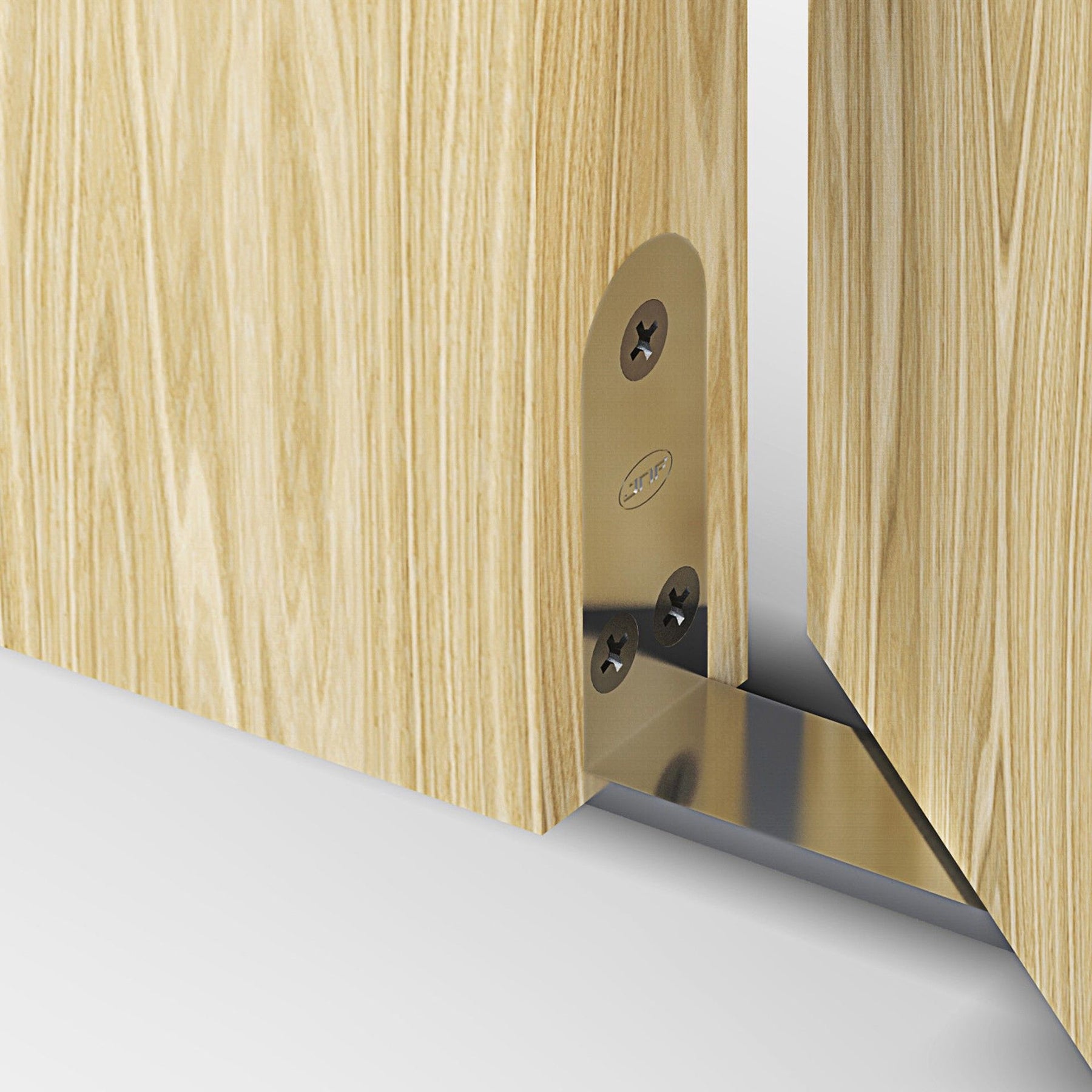

• Pivot system fixed to the door frame.
• The base doesn’t need to be fixed to the ground.
• Parts prepared for mechanized doors.
• Suitable for doors from 35 - 39mm

To simplify the selection process, JNF proudly introduces PivotLAB — a digital tool designed to help architects, designers, and technical professionals find the ideal pivot system for every project.

Simple & Intuitive Interface

PivotLAB features a clean, user-friendly interface for quick and intuitive navigation. It streamlines the selection process, helping you find the right solution without complexity.

Features

PivotLAB includes a range of calculation and selection tools, along with access to the full JNF pivot system range. It also allows you to save and organise ongoing projects, making them easy to review and manage.
