IN.05.224.HO 100 Plus Hydraulic Pivot for Wooden and Aluminium Doors

JNF by Mardeco IN.05.224.HO 100 Plus Hydraulic Pivot for wooden and aluminium doors

Unique to the New Zealand market and exclusive to Mardeco, the patented JNF hydraulic pivot for wooden doors.  The pivot is easy to fit on a finished floor without cutting concrete.

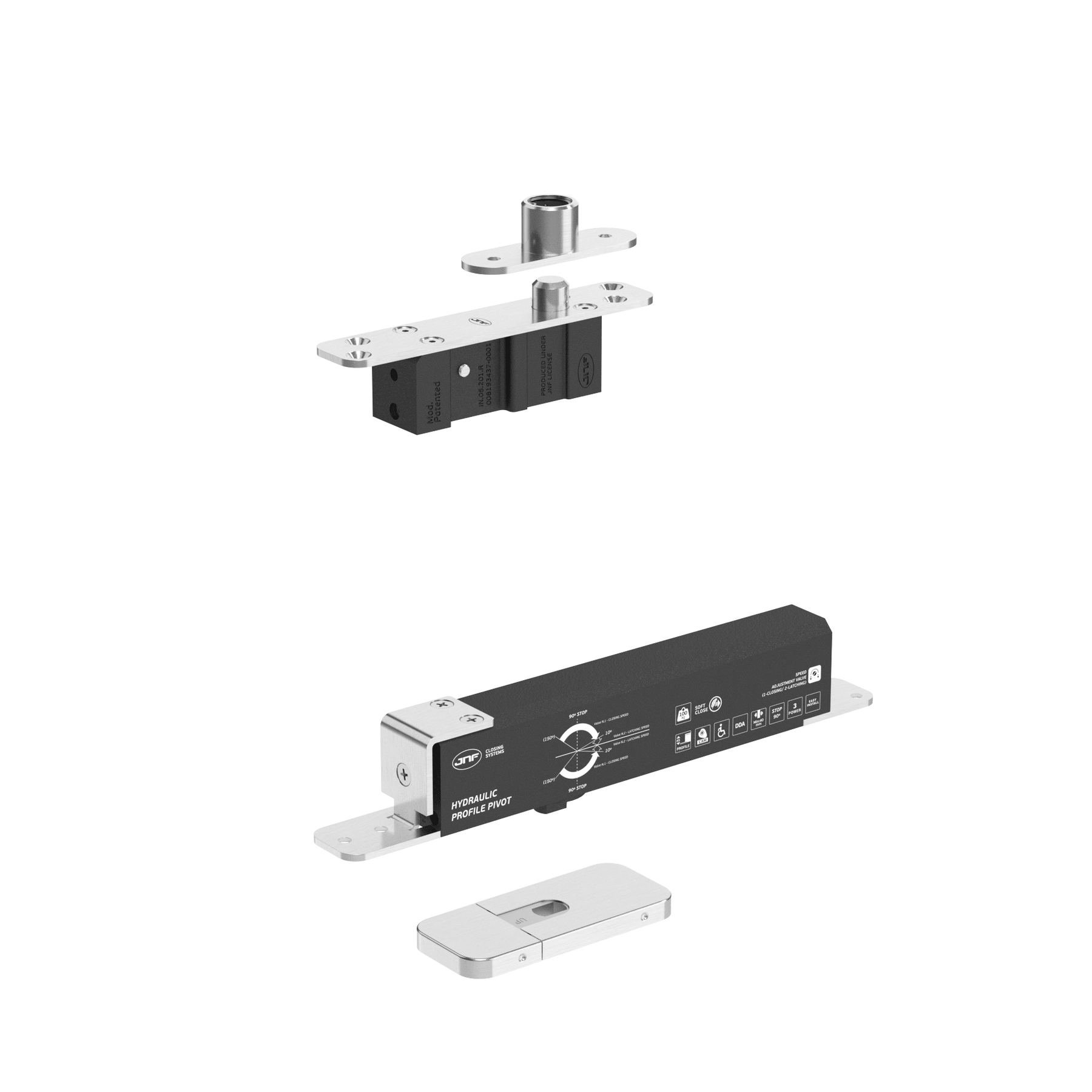

100 PLUS PROFILE is a hydraulic pivot system engineered for metal and aluminium framed doors, where slim profiles are the industry standard. Designed for doors up to 100kg, it offers a compact and technically refined solution for projects with limited structural space and high aesthetic demands.

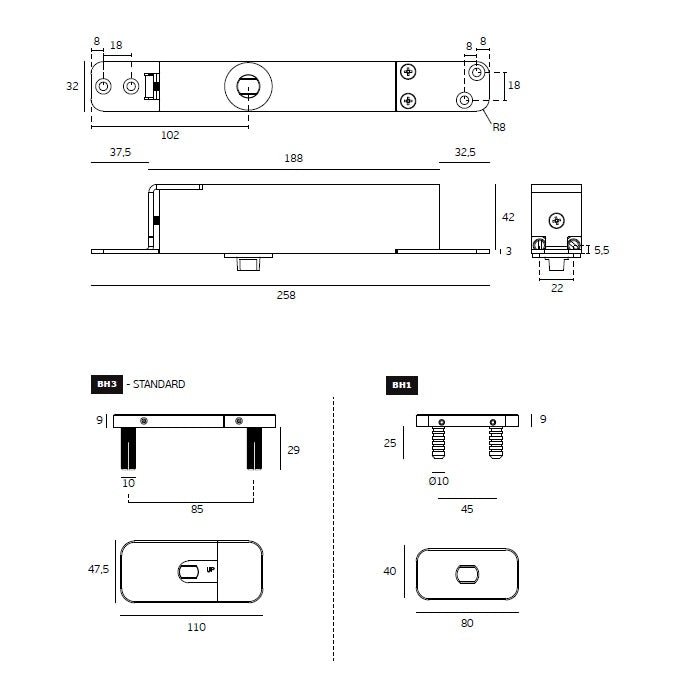

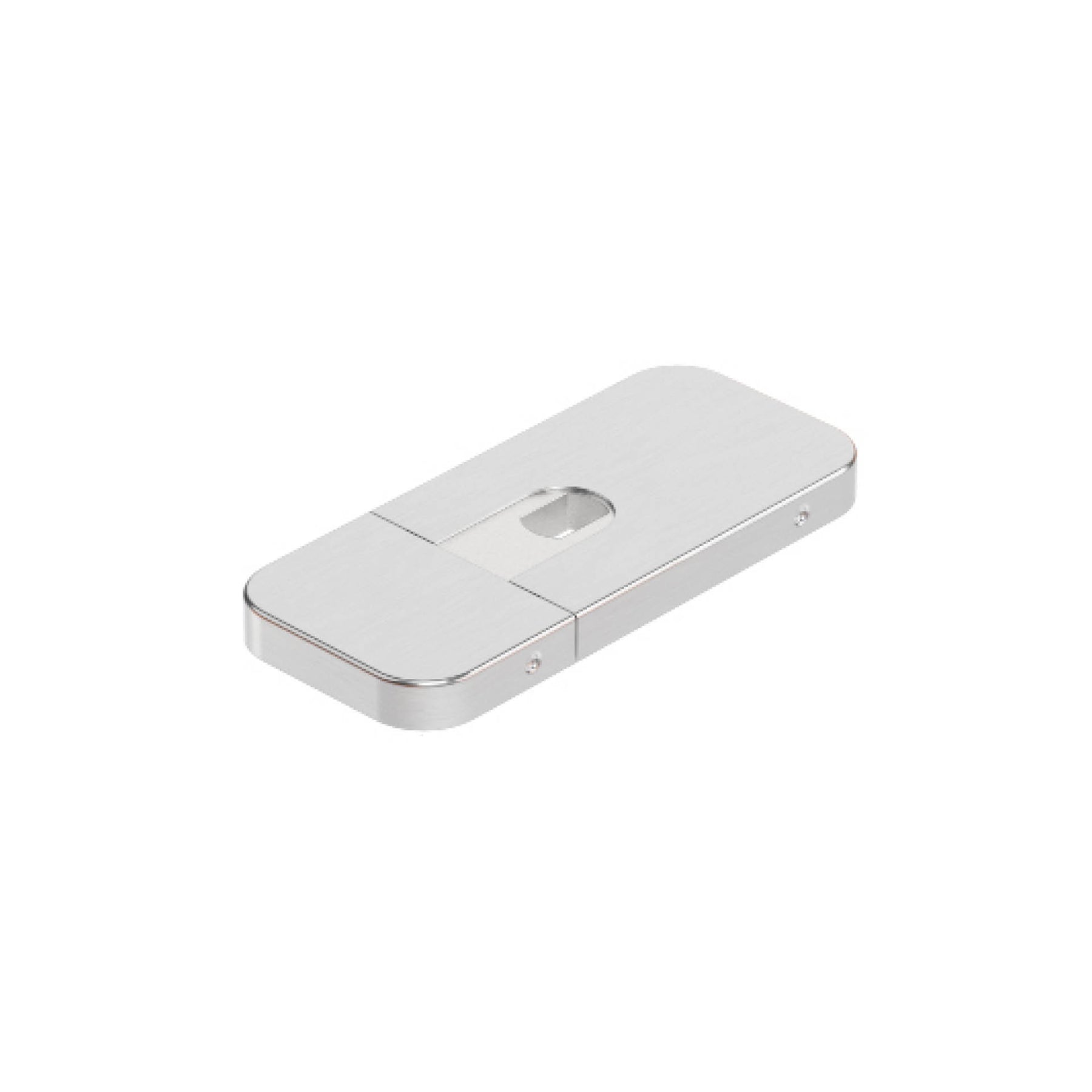

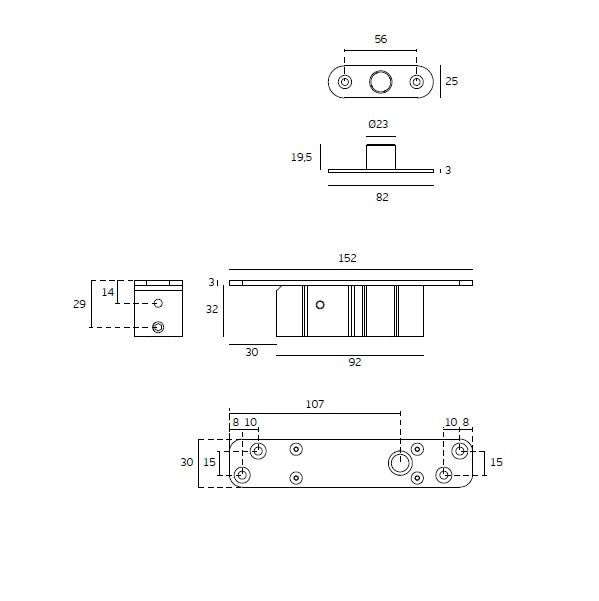

Version: Standard Model IN.05.BH3 Base IN.05.UP5 Upper Pivot

• Two speeds closing valve regulation.
• Max. Door width 1500mm.
• Max. Weight up to 100 kg.
• Wood Thickness ≥ 40mm.
• International Patent.
• System for door position adjustment
±3mm | ±3mm / 4º (consult dw *)
• Installation on the floor surface

Product Features:

+ 120º / - 120º, Soft Close, CAM, DDA, STOP 90º, PVD Titanium, Timber, Bottom Adjustment , Close Adjustment , Speed Adjustment , Metallic, Aluminium, Hinged Door, Bidirectional Door, 3 Power
